MOFI   ULTRADECK





MOFI ULTRADECK



The word “Ultra” is synonymous with Mobile Fidelity Sound Lab's philosophy. It represents our extreme pursuit of the highest level of reproduction of recorded sound—beyond the status quo—to provide music lovers with the experience of hearing the Original Master Recording in their home. Whether you're enjoying a standard LP or one of our UltraDisc One-Step limited-edition records, UltraDeck will deliver faithful playback of what's in the grooves



MAP PRICE     ULTRADECK                 $ 1,999.00 /   Including Tonearm - no Cartridge

MAP PRICE     ULTRADECK +              $ 2,299.00 /   Including Tonearm & UtraTracker Cartridge / Ready-to-Play

MAP PRICE     ULTRADECK + M          $ 2,499.00 /   Including Tonearm & MasterTracker Cartridge / Ready-to-Play      Free Shipping on all Turntables

FEATURES & SPECIFICATIONS

ULTRA TONEARM

Custom-developed and manufactured in the USA, the 10-inch Ultra tonearm uses smooth, high-quality ball bearings for low friction in the vertical and horizontal plane so all you hear is what is in the grooves. Cardas Audio wiring maintains signal purity from the headshell leads all the way through to the high-quality, gold-plated RCA connectors.

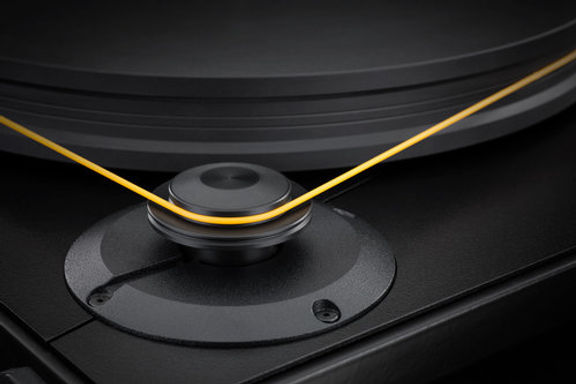

ISOLATED AC SYNCHRONOUS MOTOR



Our stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.

CONSTRAINED LAYER DAMPENING



UltraDeck features three aluminum plates carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.

METICULOUS DESIGN AND EVALUATION

Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home

ANTI-VIBRATION FEET BY HRS

Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.

1.3-INCH DELRIN® PLATTER

UltraDeck features a massive 1.3-inch Delrin® platter. The increased mass creates blacker sonic backgrounds and a lower noise floor. Delrin® is a next-generation polymer developed by Dupont. In the world of audio, Delrin's® highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

HARDENED-STEEL INVERTED BEARING



Our hardened-steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and sapphire—found in much more expensive turntables—will provide you many years of high-performance playback.

TURNTABLE SPECIFICATIONS



Motor
300 RPM AC Synchronous

Speeds
33 1/3 RPM, 45.0 RPM

Platter
6.8 lb Delrin®

Wow & Flutter
0.017% – 0.025%

Signal-To-Noise Ratio
74dB

Power Supply Requirements
120V 60Hz, 220-230V 50Hz, 100V 50Hz

Power Consumption
< 5W

Dimensions
19.69" x 6" x 14.25"

Weight
23.1 lb

TONEARM SPECIFICATIONS



Type
10" straight aluminum, gimbaled bearing

Overhang
0.71" (18mm)

Offset Angle
22.8˚ (+/- 2˚ adjustable)

Cartridge Weight Range
5g – 10g

FEATURES

  • 33-1/3 / 45.0 RPM belt drive turntable

  • Custom design and manufactured in the USA

  • 10-inch MoFi Ultra Tonearm

  • 1.3-inch Delrin® platter

  • Isolated 300 RPM AC synchronous motor

  • Anti-Vibration feet designed by HRS




DOWNLOADS

Mobile Fidelity UltraDeck Manual

Mofi StudioDeck Turntable

MoFi StudioDeck

with StudioTracker or Ultratracker Cart

MAP $1349 to $1649 !

Mofi StudioPhono Phono Stage

MoFi StudioPhono - MM/MC

MAP $299 !

MoFi UltraPhono Phono Stage

MoFi UltraPhono - MM/MC/HPA

MAP $499 !

YOU MAY ALSO LIKE

MOBILE FIDELITY ACCESORIES

MOFI Super HeavyWeight



MoFi Electronics proudly announces the addition of the Super HeavyWeight record weight to its product lineup. Best described as a “super noise killer,” it is intended for use with all makes of turntables

— not just MoFi Electronics models



INTRODUCING THE MUST-HAVE ACCESSORY FOR ALL TURNTABLE OWNERS

Super HeavyWeight was conceived with the assistance of MoFi Electronics’ good friend, Mike Latvis, of Harmonic Resolution Systems (HRS). The device uses Latvis’ proprietary polymer material, renowned for its exceptional noise-absorption characteristics. In addition to coupling the record to the platter, Super HeavyWeight significantly reduces noise—specifically, record groove, motor, and bearing noise. Listeners will hear more music due to resultant blacker backgrounds, increased inner detail, improved clarity, enhanced microdynamics, and greater bass impact.





Created by music lovers for music lovers, and born from a desire to get the most music out of vinyl LPs, Super HeavyWeight is a real “ear opener” that offers exceptional value—especially for budget-minded vinylphiles. While no turntable is perfect, adding a Super HeavyWeight guarantees a big leap in sonic performance.







FEATURES

  • Dimensions: 3.0” diameter and 1.355” height

  • Weight: 367.4 grams, the optimum weight with respect to applying no strain or stress to a turntable’s motor, bearing, or suspension

  • Outer shell: Comprised of billet-machined 6061 aluminum for an easy grip

  • Underside: Made from a soft polymer that ensures damage-free operation with LPs

MAP  $ 199.00

Mofi SuperHeavyweight LP Clamp Gallery
Mofi SuperHeavyweight LP Clamp Gallery
Mofi SuperHeavyweight LP Clamp Gallery
Mofi SuperHeavyweight LP Clamp Gallery
Mofi SuperHeavyweight LP Clamp Gallery
