PUSH-PULL TUBE AMPLIFIERS
TRAFOMATIC
Where the Heart and the Soul meet Innovation
At Trafomatic Audio we don’t take any of the usual high-end audio norms as standard.
We’re setting new standards by moving the bar to extremes in each of our products. We strive for a level of excellence that goes beyond what the industry has tried to impose on listeners for the past few decades. Where most stop, our journey just begins.
MADE IN SERBIA
TRAFOMATIC PUSH-PULL AMPLIFIERS
EOS Integrated
EOS
KT120 Integrated Amplifier
Output power : 2x100W
Class of operation : Push Pull (class AB)
Remote Control : Yes
Tubes complement :
4x KT120, 2x ECC99, 2x 5687
Inputs : 3x RCA, 1x XLR
Outputs : 4 – 8 ohm
Headphone Output :
25-150 ohms , 3W at 50 ohms
Input sensitivity :
0.6V rms
THD % : 0.03% – 1W, 2% – 100W
Frequency bandwidth : 10Hz-100KHz (-1dB)
S/N Ratio : 82dB
Input impedance : 100K
Power consumption : 500VA
Size : 450×350 x230mm
Weight : 25kg + 11Kg PSU
Handmade in Serbia
$ 9,000
The EOS Integrated amplifier is one of the most powerful integrated amplifiers in the Trafomatic Audio line. It is constructed as push-pull using the well known KT120 output tubes.
Output power is 100W per channel, which is sufficient for most speakers, even those with lower than average sensitivity. This is a integrated amplifier and doesn’t require a preamplifier.
Based on previous work on negative feedback, -6dB has been applied to provide a sound equivalent to a good Single Ended circuit. Cathode feedback was selected for enhanced musicality. Bass is well controlled, dynamic response is excellent. As such, and this amplifier is top of its class.
A well designed out-board power supply unit utilizes a 800VA toroidal transformer and separate C-L-C filter circuit per channel. Output transformers are based on a Double-C core configuration, and Solen fast capacitors are used throughout.
EOS +
EOS +
KT150 Integrated Amplifier
KT150 Stereo Power Amplifier
Output power : 2x150W
Class of operation : Push Pull (class AB)
Remote Control : Yes - Integrated
Tubes complement :
4x KT150, 2x ECC99, 2x 5687
Inputs : 3x RCA, 1x XLR - Integrated
Outputs : 4 – 8 ohm
Headphone Output - Integrated :
25-150 ohms , 3W at 50 ohms
Input sensitivity :
0.6V rms
THD % : 0.03% – 1W, 2% – 100W
Frequency bandwidth : 10Hz-100KHz (-1dB)
S/N Ratio : 82dB
Input impedance : 100K
Power consumption : 500VA
Size : 450×350 x230mm
Weight : 25kg + 11Kg PSU
Handmade in Serbia
$ 11,500 - Integrated
$ 10,500 - Stereo Power
The EOS + amplifier is a similar in design to the EOS. It is a more powerful push-pull version using the most powerful of the current production KT tube - the KT150.
Output power is a hefty 150W per channel, which drive speakers with demanding loads. The EOS+ is available in two versions : a stereo power amplifier, and an integrated amplifier that doesn’t require a preamplifier. And, given Trafomatic's Head-Fi origins, it is kind of second nature for them to include "Uber-Hi-End Headphone-Service" in most of their components :=)) ... and the said "headphone service" involving a competent Headphone Output delivering a very potent 3W into 50 ohms !
But, back to the power stage : Based on previous work on negative feedback, -6dB has been applied to provide a sound equivalent to a good Single Ended circuit. Cathode feedback was selected for enhanced musicality. A well designed out-board power supply unit utilizes a massive 800VA toroidal transformer and separate C-L-C filter circuits per channel.
The Output transformers are based on a Double-C core configuration, and Solen fast capacitors are used throughout. As a result, Bass is well controlled and dynamic response is excellent.

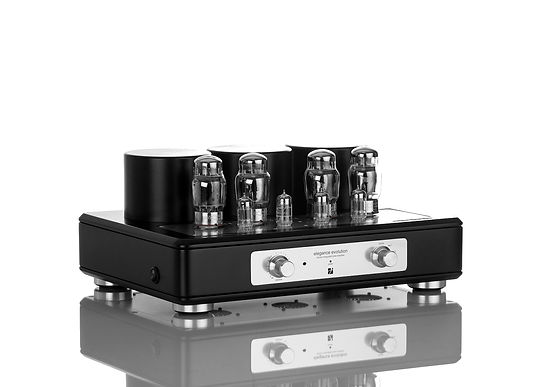

Elegance Evolution
Sleek Dude !
Elegance Evolution
6550/KT88 Integrated Amplifier
6550/KT88 Power Amplifier
Output power : 2x50W
Class of operation : Push-Pull (class AB)
Tubes complement :
4x 6550, 2x ECC81, 2x ECC82
Inputs - Integrated : 4xRCA
Inputs - Power Amp : 1x XLR, 1x RCA
Outputs : 4 – 8 ohm
Input sensitivity :
0.8V rms (Integrated) / 2V rms (Power Amp)
THD % : 0.03% – 1W, 3% – 50W/1kHz
Frequency bandwidth :
10Hz-45KHz (Integrated)
10Kz-85KHz (Power Amp)
S/N Ratio : 85dB
Input impedance : 100K
Power consumption : 250VA
Size : 450×320 x195mm
Weight : 22kg
Handmade in Serbia
$ 4,000 INTEGRATED AMPLIFIER
$ 3,700 POWER AMPLIFIER
The Elegance Evolution stereo push -pull amplifier is a successor of highly regarded and awarded Experience Elegance amplifier. This design id offered in both Integrated and Stereo Power Amplifier variants.
State of the art, no—compromise power supply and oversized output transformers (wound on Double-C cores) characterize the Elegance Evolution amplifier as another definitive audiophile product.
Description
The Elegance Evolution Integrated amplifier combines the output stage of our most powerful Evolution series amplifier with input switching, and a passive buffered attenuator (ALPS) driven by remote control.
The class AB power stage in ultra-linear mode produces 50 watts per channel from a quartet of push-pull connected 6550 (KT88). Manual setting of bias of each 6550 is new feature, and allows adjustment of the bias ... even on un-matched output tubes !
A small amount of cathode feedback lowers the output impedance and ensures excellent bass control and dynamics. Ab "all new" power supply greatly benefits from an oversized, proprietary Trafomatic Audio 300VA toroidal transformer, C-L-C filtering and Rubycon electrolytic smoothing capacitors.
Excellent sound is achieved via the high-quality double C-core output transformers, and the exclusive Solen (fast caps) in the signal path.
Elegance Evolution amplifier was designed from the ground up to satisfy both demanding audiophiles and music lovers. It can drive speakers from 88dB with authority, refinement and emotional impact.
Its potent and emotionally involving performance, combined with its high quality enclosure make it a very convincing Value Proposition.
TRAFOMATIC PUSH-PULL MONOBLOCK AMPLIFIERS
Kaivalya
"Magnum Opus"
Kaivalya
EL84 Monoblock Amplifier
with interstage transformers
Output power : 2x25W / Class A
Class of operation :
PP Class A
Tubes complement :
4x EL84, 1x ECC81 per mono
Outputs : 4 – 8 ohm
Input sensitivity :
2.8V rms
THD % : 0.03% 1W/1kHz - 1% 25W/1kHz
Frequency bandwidth : 10Hz - 95KHz (-1dB)
S/N Ratio : 82dB
Input impedance : 100K
Power consumption : 150VA
Size : 430×290 x165mm
Weight : 20kg
Handmade in Serbia
$ 10,500
For more power than is easily available from 2A3 and 300B direct-heated triodes, we offer the EL84-based Kaivalya mono amplifiers. This project began as a custom commission for an audio magazine editor. It is now a production item in our top White Range. The brief submitted for this project asked for 45-type refinement and speed, lower THD, higher linearity, more bandwidth and 25 watts of power.
Our solution was a class A push/pull pentode power section with four EL84/6P14P-EV and solid-state rectification. This stage is driven from a single-ended 12AU7/ECC82 driver. Interstage coupling using our own 11-section transformer with 38 windings eliminates coupling capacitors. Between driver and power stage, we apply a very minimal 0.3dB of local negative feedback for a significant reduction in harmonic distortion. The minimalist signal path of five tubes and two transformers is accompanied by a very overbuilt power supply. It includes three 10H Trafomatic smoothing inductors for the G2, driver stage and high-voltage power supplies.
There are custom Trafomatic standby, power and dual C-core output transformers, current-limiting overload transistors and a LM317T voltage stabilizer for the driver heater supply.
The mono amplifiers are finished in high-gloss white lacquer for the copper-lined solid wood casing and four transformer covers. The screwless top plate with engraved tube markers, the terminal plate and the power knob are fine aluminum. Custom paint colors are available by request. An engraved plexiglass tube shield is lit from below with concealed white LEDs during operation and orange in standby. WBT speaker terminals offer 4- and 8-ohm connection. The input sensitivity is 3V to optimize volume range of a partnered preamplifier.
Trafomatic Audio Kaivalya Mono
" No Comment "
NOA
KT150 Monoblock Amplifiers
Output power : 2x200W
Class of operation :
Push-Pull Class AB
Tubes complement :
4x KT150 , 1x ECC99, 1x 5687 - per mono
Inputs : 1x RCA, 1x XLR
Outputs : 4 and 8 ohm
Input sensitivity :
1.2V rms
THD % : 0.03% 1W/1kHz - 4% 200W/1kHz
Frequency bandwidth : 10Hz - 90KHz (-1dB)
S/N Ratio : 82dB
Input impedance : 100K
Power consumption : 600VA
Size : 550×350x260mm
Weight : 35kg / Amplifier - 11kg / PSU
Handmade in Serbia
$ 20,000
The Trafomatic Audio NOA Monoblocks represent the company's latest design direction. Curved lines give NOA a contemporary appeal, that looks refreshed, stylish and blends very nicely in its surroundings.
This new aesthetic fits nicely in both classical and modern living rooms and project design object of beauty.
The NOA monoblock is a mature circuit design that is true to the Trafomatic DNA.
These are the most powerful amplifiers in the Trafomatic Audio Line, constructed in push-pull mode using four KT150 Tung-sol output tubes per channel. With an output power of 200W per channel, Noa can drive pretty much any speaker made.
Based on previous work on negative feedback, -6dB has been applied to provide a sound equivalent to a good Single Ended circuit. Cathode feedback was selected for enhanced musicality. Bass is well controlled, dynamic response is excellent. As such, and this amplifier is top of its class.
The monoblocks are powered by two well designed out-board power supply units, each utilizing a 800VA toroidal transformer and separate C-L-C filter circuit per channel. The output transformers are based on a Double-C core configuration, and Solen fast capacitors are used throughout.
