Swissonor PX25 Tube amplifier

SWISSONOR

A CAREFULLY SELECTED LINE OF AMPLIFIERS AND PREAMPLIFIERS

DESIGNED AND BUILT WITH GREAT CARE AND ATTENTION TO DETAIL

TRUE TESTIMONIES OF THE SWISS TRADITION OF TIMELESS DESIGN AND UNCOMPROMIZED QUALITY

HAND MADE - PRODUCT OF SWITZERLAND

Swissonor RS Solid State Amplifier

RS

"RADICALLY SIMPLE"

solid state ... mais tres tres tube !

SWISSONOR   RS Solid State Integrated Amplifier

RS=Radically Simple



If you need more power to drive medium efficiency loudspeakers, without giving up the radical fidelity of Swissonor tube amps, this item is for you. The strictly double monophonic design using two huge toroidal transformers enhances an ultra sober design, composed of a passive line preamplifier and a single chip OPA per channel, wthout any intermediate stage.



The optional phono preamplifier module with passive RIAA equalisation allows it's use in a high end vinyl disc music system. The rugged construction on a cast iron mainframe with decoupling elements translates the Swissonor philosophy into the universe of solid state technology:



  • Shortest signal path, connectors and cables used for connecting separate components are eliminated

  • Design eliminates impedance and gain mismatch and reduces the number of active circuits

  • One oversized power supply for each channel

  • Separate ground wiring together with central ground connection and ground lift for best signal purity and lowest hum and noise

  • Passive line amplifier followed by a single 3886 OPA power amplifier per channel

  • High quality components all around, as Block toroidal transformers, very long life low inductance capacitors, ALPS blue velvet volume control and double layer gold plated cardboards.



Handmade in Switzerland


MRSP   $ 4,500.00  >>  New Product   /
SPECIAL OFFER    $ 3,750.00

MRSP   $ 5,000.00        including MM or MC Stage /     SPECIAL OFFER     $ 4,149.00

Topology                    Solid State Class A-AB
Output Power           50 Watt/channel into 8 Ω
                                    80 Watt/channel into 4 Ω

Input Impedance     50 kΩ
Input Sensitivity       500 mV
Power Bandwidth    5 Hz to 100 kHz +/- 2 db

Optional

Phono Stage                  MM or MC Board

MM Sensitivity               5 mV
MC Sensitivity                2.5 mV
Input Impedance          47 kohm / MM
Input Impedance          Customized / MC

45 SE

"LE QUARANTE-CINQ"

Swiss Zen

SWISSONOR   TYPE 45 SE  Integrated Amplifier

This is the version of the classic V.S.O.P. integrated amplifier using 45 triodes in Single Ended configuration. The back-to-the-roots concept brings the most musical sound possible to very high efficiency loudspeakers  -- minimum 96 dB Thiele Half Space Reference Efficiency.


Optional OP Phono amplifier in passive RIAA design, or optional Digital to Analog Converter (DAC) make it really versatile.


As a high performance Swiss Made unit, the Type 45 SE's circuit is three-dimensionally decoupled on a cast iron base frame using the same receipts as its benchmark, the AM series:


Shortest signal path, connectors and cables used for connecting separate components are eliminated. Design eliminates impedance and gain mismatch and reduces the number of active circuits. Separate power transformers for tube and solid state sections Separate ground wiring together with central ground connection and ground lift for best signal purity and lowest hum and noise.


Preamp-driver with a bootstrap of 12AT7/6201 triodes, power amplifier with Full Music 45/n Mesh Plate triodes. Without negative feedback loop.
High quality components all around, such as perfectly symmetrical output transformer with 14 distinct windings on M74 core made from heat treated M111 oriented grain core, SCR polypropylene silver capacitors for signal path, 105°C electrolytic capacitors for filtering and double layer Gold plated  cardboards.



Handmade in Switzerland


MRSP   $ 6,125.00
SPECIAL OFFER (valid until end 03/2019)               $ 4,999.00

MRSP   $ 6,625.00      including MM or MC Stage  / Special OFFER        $ 5,399.00

Topology                    Tube SE Class A
Output Power           1.6 Watt/channel into 8 Ω
                                    Optionally with 4 or 16 Ω

Input Impedance     50 kΩ
Input Sensitivity       600 mV
Power Bandwidth    20 Hz to 60 kHz +/- 2 db   -
without NFB !

Optional

Phono Stage                  MM or MC Board

MM Sensitivity               5 mV
MC Sensitivity                2.5 mV
Input Impedance          47 kohm / MM
Input Impedance          1 kohm / MC

VSOP

"VERY SPECIAL INDEED"

six-V-six magique !

SWISSONOR   VSOP Integrated Amplifier

As a compact version of our unique AM modular tube amplifier system, the V.S.O.P allows access to the AM2 All Tube circuit, combined to a compact power pack concept, at limited expense.


Optional OP Phono amplifier in passive RIAA design, or optional Digital to Analog Converter (DAC) make it really versatile.


As an affordable high performance Swiss Made unit, the V.S.O.P.'s circuit is three-dimensionally decoupled on a cast iron base frame using the same receipts as its benchmark, the AM series:


Shortest signal path, connectors and cables used for connecting separate components are eliminated. Design eliminates impedance and gain mismatch and reduces the number of active circuits. Separate power transformers for tube and solid state sections Separate ground wiring together with central ground connection and ground lift for best signal purity and lowest hum and noise.


Preamp and phase shifter with a bootstrap of ECC 81, power amplifier with 6V6 tetrodes in ultralinear configuration.
High quality components all around, such as perfectly symmetrical output transformer with 14 distinct windings on M74 core made from heat treated M111 oriented grain core, Mundorf and SCR polypropylene capacitors for signal path, 105°C electrolytic capacitors for filtering and double layer Zincor cardboards.



Handmade in Switzerland


MRSP   $ 5,000.00
SPECIAL OFFER (valid until end 3/2019)               $ 3,899.00

MRSP   $ 5,500.00      including MM or MC Stage  / Special OFFER        $ 4,299.00

Topology                    Tube PP Class A
Output Power           8 Watt/channel into 8 Ω
                                    Optionally with 4 or 16 Ω

Input Impedance     100 kΩ
Input Sensitivity       360 mV
Power Bandwidth    25 Hz to 60 kHz +/- 2 db   -
without NFB !

Optional

Phono Stage                  MM or MC Board

MM Sensitivity               5 mV
MC Sensitivity                2.5 mV
Input Impedance          47 kohm / MM
Input Impedance          Customized / MC

AM

"AMPLIFICATEUR MODULAIRE"

tube "a la carte"

SWISSONOR   AM SYSTEM  -  Modular Amplifier System

This unique modular amplifier system in 100% tube design combines a choice of pre- and power amplifiers on a common mechanical mainframe, thus eliminating all problems related to external wiring, impedance and voltage mismatch.


Available Module Blocks:


AM1  Power Pack for one preamplifier and two power amplifier modules, using               a vacuum valve as high-voltage rectifier.


AM2  Power Amplifier Push-Pull with 6V6 beam-power tetrodes in ultra-linear                 mode  (10W/channel)      Optional : Direct entry from external preamp


AM3  Single Ended Power Amplifier with 6B4 triode (3,6 Watt/channel)
           Optional : Direct entry from external preamp

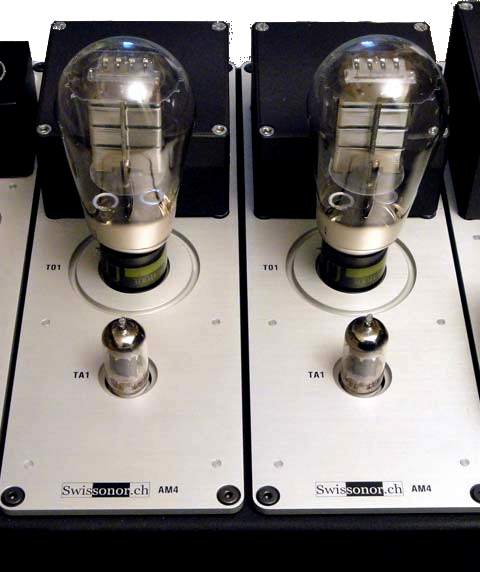

AM4  Single Ended Power Amplifier with 300B triode (8 Watt/channel)
           Optional : Direct entry from external preamp


AM5  Passive Preamp with step-up transformer 1:1,5 or 1:3, four line inputs and             volume control.


AM6  RIAA Preamp, 2 phono and 3 line inputs
           Optional : Hashimoto step-up transformer

           Choice of 1 or 2 low impedance moving-coil cartridges can be operated


Handmade in Switzerland





Pricing :    Upon Request, and depending on Modules and Options

Topology                    Tube PP Class A
Output Power           8 Watt/channel into 8 Ω
                                    Optionally with 4 or 16 Ω

Input Impedance     100 kΩ
Input Sensitivity       360 mV
Power Bandwidth    25 Hz to 60 kHz +/- 2 db   -
without NFB !

Optional

Phono Stage                  MM or MC Board

MM Sensitivity               5 mV
MC Sensitivity                2.5 mV
Input Impedance          47 kohm / MM
Input Impedance          Customized / MC

AM6

"ETAGE RIAA et LIGNE"

diminutive versatility

SWISSONOR   AM 6  -  Line / Phono Preamplifier

Topology



  • RIAA preamplifier with 2 phono and 3 line inputs



Goals

  • Highest sound quality thru non compromise full-tube design

  • Shortest signal paths

  • High output voltage of the RIAA stage, eliminating the need for additional active line amplification stages

  • Use of MM and/or MC phone cartridges

  • Flexible trough separate PCB for RIAA circuit, plugged-in the preamp’s PCB

  • Cabling and operation on top side, ideal for placement next to other equipment



Design

  • Input selection by totally closed double relays, positioned directly at the input socket

  • Additional relay for phono switching

  • Optional integrated Hashimoto step-up transformers (at choice HM-3 or HM-X, with 3Ω or 12 Ωinput impedance) for use with low impedance high-end phone cartridges as Ortofon SPU type)

  • Phono preamp with symmetrical circuit and separate symmetrical ground lines for lowest noise

  • 3-stage RIAA preamplifier/equalizer (based on Marantz 7 circuit) using three ECC83 triodes (compatible 12AX7, E83CC, ECC 803)

  • Regulated high voltage line, stabilised with dedicated Mundorf polypropylene condensers for each stage

  • Regulated DC heating, stabilised

  • ALPS blue power attenuator, 1% 50ppm Metal-Oxide-Resistors, silver/mica and Styroflex condensers and other selected high-grade parts

  • Double face Zinkor- PCB (zinc-gold-alloy) , hand-soldered with Cardas silver tri-eutectic alloy

  • Final check after 12h burn-in

  • Phono section

Input impedance                                                                   47 kΩ (Optional 3Ω or 12Ω)

Gain (without step-up transformer                                    43 dB

Input sensitivity  (without step-up transformer)              7 mV for 1 V (1kHz)

Distortion at 2V Output voltage                                          0,01 %

Signal-to-noise ratio at 2V                                                    >88 dB



  • MC-section  -  optional

Step-up Hashimoto                          HM-3                                                           HM-X

Gain                                  26 dB (12Ω) or 32 dB (3Ω)                         23 dB (12Ω) or 29 dB(3Ω)

Bandwidth                       15 Hz to 50 kHz +/- 1 dB                            15 Hz to 100 kHz +/- 1dB

  • Line section

Input impedance                                    100 kΩ





Handmade in Switzerland





MRSP  $  5,500.00         with MM Phono Stage

MRSP  $  6,700.00         with MC Hashimoto HM-3 SUT

MRSP  $  7,500.00         with MC Hashimoto HM-X SUT

AM5

"ETAGE LIGNE PASSIF"

passively transformative

SWISSONOR   AM 5  -  Passive Volume Control

  • Goals : Highest sound quality with amplification by step-up transformers

  • Shortest signal paths : Cabling and operation on top side, ideal for placement next to other equipment

  • Design :  Input selection by totally closed double relays, positioned directly at the input socket

  • Pair of 1:1,5/1:3 encapsuled input transformers

  • Gain selector +3/+9 dB

  • ALPS blue power attenuator

  • Double face Zinkor- PCB (zinc-gold-alloy) , hand-soldered with Cardas silver tri-eutectic alloy



Data



Input impedance                                                                                 45 kΩ (+3 dB), 11 kΩ (+9 dB)

Bandwidth                                                                                            11 Hz to 85 kHz -3dB

Gain                                                                                                       +3 dB or +9 dB switchable



Handmade in Switzerland





MRSP  $  2,350.00
