TONEARMS
Click on Price Buttons to see Product Detail Pages
Thomas Schick / 12" Tonearm
12 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell - Hand-machined in Germany
Alignment
Baerwald
Effective Length
317.5 mm
Arm to Spindle
304.75 mm
OPTIONS
Graphite Headshell
Other
Captive RCA Cable
Null @
66 /120.9
Overhang
12.82 mm
Offset Angle
17.11
Option Cost
$ 295
Other
Heavy Counterweight
-
Thomas Schick / 9.6" Tonearm
9.6 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell - Hand-machined in Germany
Alignment
Baerwald
Effective Length
245.8 mm
Arm to Spindle
229 mm
OPTIONS
Graphite Headshell
Other
Captive RCA Cable
Null @
66 /120.9
Overhang
16.8 mm
Offset Angle
22.345
Option Cost
$ 295
Other
Heavy Counterweight
-
Thomas Schick - Mobile Fidelity Edition / 9.6" Tonearm
9.6 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Germany
Alignment
Lofgren A
Effective Length
245.8 mm
Arm to Spindle
229 mm
OPTIONS
Graphite Headshell
Other
DIN Connector
Null @
66 /120.9
Overhang
16.8 mm
Offset Angle
22.345
Option Cost
$ 295
Other
Heavy Counterweight
-

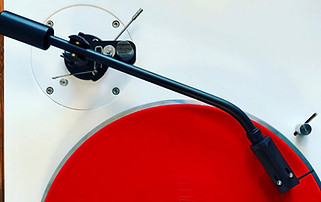

Thomas Schick - Mobile Fidelity Edition / 10.5" Tonearm
10.5 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Germany
Alignment
Lofgren A
Effective Length
284.4 mm
Arm to Spindle
270 mm
OPTIONS
Graphite Headshell
Other
DIN Connector
Null @
66 /120.9
Overhang
14.4 mm
Offset Angle
19.182
Option Cost
$ 295
Other
Heavy Counterweight
-
Thomas Schick - Mobile Fidelity Edition / 12" Tonearm
12 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Germany
Alignment
Lofgren A
Effective Length
317.5 mm
Arm to Spindle
304.75 mm
OPTIONS
Graphite Headshell
Other
DIN Connector
Null @
66 /120.9
Overhang
12.82 mm
Offset Angle
17.1
Option Cost
$ 295
Other
Heavy Counterweight
-
Groovemaster - GM III / 9" Tonearm
9 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Holland
Alignment
nc
Effective Length
245.8 mm
Arm to Spindle
229 mm
OPTIONS
Headshells
VTA Lift Base
SME Base
STD Base
Other
DIN Connector
Null @
nc
Overhang
16.8 mm
Offset Angle
22.38
Option Cost
Headshell $ 225
VTA Lift $ 990
SME Base $ 341
STD Base $ 110
Other
Heavy Counterweight
Anti Skate
Groovemaster - GM III / 10" Tonearms Two Versions
10 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Holland
Alignment
nc
Effective Length
256.1mm/269mm
Arm to Spindle
240 mm/254 mm
OPTIONS
Headshells
VTA Lift Base
SME Base
STD Base
Other
DIN Connector
Null @
nc
Overhang
16.1mm/15.0mm
Offset Angle
16.1 & 15.0
Option Cost
Headshell $ 282
VTA Lift $ 917
SME Base $ 341
STD Base $ 110
Other
Heavy Counterweight
Anti Skate
Groovemaster - GM III / 12" Tonearms Three Versions
10 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Holland
Alignment
nc
Effective Length
303.5mm/317.57mm/
320mm
Arm to Spindle
290mm/304.75mm/
309mm
OPTIONS
Headshells
VTA Lift Base
SME Base
STD Base
Other
DIN Connector
Null @
nc
Overhang
13.5mm/12.82mm/11.0mm
Offset Angle
17.94 / 17.11/ 15.9
Option Cost
Headshell $ 282
VTA Lift $ 990
SME Base $ 341
STD Base $ 110
Other
Heavy Counterweight
Anti Skate
Groovemaster - GM 4 Reference 9" & 10" & 12" Tonearms 6 Versions
SPU-G / SME type, U-Low tolerance Bearing, Includes HS-01 Headshell, DIN Cable Connector - Hand-machined in Holland
Alignment
nc
Effective Length
303.5mm/317.57mm/
320mm
Arm to Spindle
229mm/317mm/
309mm
OPTIONS
VTA Lift Base
SME Base
STD Base
Other
DIN Connector
Null @
nc
Overhang
13.5mm/12.82mm/11.0mm
Offset Angle
17.94 / 17.11/ 15.9
Option Cost
VTA Lift $ 990
SME Base $ 341
STD Base $ 110
Other
Heavy Counterweight
Magnetic Anti Skate
ORTOFON - AS-212R / 9" Reference Tonearm
9" Statically Balanced, Removable Headshell, 2 Counterweights, DIN Cable Connector, includes 6NX-TSW 1010 DIN Phono Cable
Alignment
Baerwald
Effective Length
232 mm
Arm to Spindle
214 mm
OPTIONS
-
Other
DIN Connector
6NX-TSW L DIN Cable ($314 Value)
Null @
NA
Overhang
18 mm
Offset Angle
23.75
Option Cost
-
Other
-
-
ORTOFON - AS-309R / 12" Reference Tonearm
12" Statically Balanced, Removable Headshell, 2 Counterweights, DIN Cable Connector, includes 6NX-TSW 1010 DIN Phono Cable
Alignment
Baerwald
Effective Length
323.5 mm
Arm to Spindle
311 mm
OPTIONS
-
Other
DIN Connector
6NX-TSW L DIN Cable ($314 Value)
Null @
NA
Overhang
12.5 mm
Offset Angle
16.75
Option Cost
-
Other
-
-
THALES - Simplicity / 9" Tonearm
9"/ Swappable Headshell, TTF-Bearing Technology, Thales Tetragon Tracking Solution, DIN Cable Connector
Alignment
NA
Effective Length
229 mm
Arm to Spindle
230 mm - 9"
OPTIONS
Thales Headshell
Attached Phono
Cables RCA or XLR
SME Adapter
Other
Bronze, Black or Grey
Finishes
Null @
NA
Overhang
NA
Offset Angle
Range : 8 > 19
Option Cost
HS : $320
Cable : $1,600
SME Base : $480
Other
All Finishes : + $0.00
-
![StatementSilver2[1].jpg](https://static.wixstatic.com/media/d25f4f_7d5f1c088af74db0a33d33cd5a398920~mv2.jpg/v1/crop/x_0,y_11,w_800,h_507/fill/w_319,h_202,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/StatementSilver2%5B1%5D.jpg)
THALES - Statement / 9" Tonearm
9"/ Swappable Headshell, TTF-Bearing Technology, Thales Tetragon Tracking Solution, DIN Cable Connector
Alignment
NA
Effective Length
NA
Arm to Spindle
230 mm - 9"
OPTIONS
Thales Headshell
Attached Phono
Cables RCA or XLR
Other
Gold, Black or Silver
Finishes
Null @
NA
Overhang
NA
Offset Angle
Range : 8 > 19
Option Cost
HS : $480
Cable : $1,600
Other
Black Finish + $1,500
Gold Finish + $3,000
EMT - HI SERIES / 9" & 12" Tonearms
9" & 12" / Fixed Headshell, DIN Cable Connector
Alignment
NA
Effective Length
310.15 mm - 12"
246.75 mm - 9"
Arm to Spindle
297 mm - 12"
230 mm - 9"
OPTIONS
-
Other
DIN Connector
Null @
66 /120.9 - 12"
66 /120.9 - 9"
Overhang
13.15. mm - 12"
16.75. mm - 9"
Offset Angle
17.55
22.25
Option Cost
-
Other
-
-
EMT - PROFESSIONAL SERIES / 9" & 12" Tonearms
9" & 12" / Connector for EMT Tonedose Cartridges, DIN Cable Connector
Alignment
NA
Effective Length
310.15 mm - 12"
246.75 mm - 9"
Arm to Spindle
297 mm - 12"
230 mm - 9"
OPTIONS
-
Other
DIN Connector
Null @
66 /120.9 - 12"
66 /120.9 - 9"
Overhang
13.15. mm - 12"
16.75. mm - 9"
Offset Angle
17.55
22.25
Option Cost
-
Other
-
-
Swissonor - Thorens TA10 / 10" Tonearm - for Thorens TD124
10 " SPU-G / SME type, ultra low tolerance Bearing, Removable Headshell, DIN Cable Connector - Hand-machined in Switzerland
Alignment
nc
Effective Length
240 mm
Arm to Spindle
225 mm
OPTIONS
Armboards
Other
Counterweight
Null @
nc
Overhang
15 mm
Offset Angle
35.5
Option Cost
Call
Other
Heavy Counterweight
30-50 gms
SORANE / TA-1 9" Tonearm
9" Gimbal-bearing design - Adjustable Anti-Skate - Detachable 17gm / Azimuth-adjustable Sorane Headshell included
Alignment
nc
Effective Length
232 mm
Arm to Spindle
216 mm
OPTIONS
-
Other
Headshell included
17 gms
Null @
nc
Overhang
16 mm
Offset Angle
22 degrees
Option Cost
-
Other
-
-
SORANE / TA-1 L 12" Tonearm
12" Gimbal-bearing design - Adjustable Anti-Skate - Detachable 17gm / Azimuth-adjustable Sorane Headshell included
Alignment
nc
Effective Length
322 mm
Arm to Spindle
310 mm
OPTIONS
-
Other
Headshell included
17 gms
Null @
nc
Overhang
12 mm
Offset Angle
16.5 degrees
Option Cost
-
Other
-
-
SORANE / SA-1.2 9" Tonearm
9" Gimbal-bearing design - Adjustable Anti-Skate - Detachable 17gm / Azimuth-adjustable Sorane Headshell included
Alignment
nc
Effective Length
239 mm
Arm to Spindle
223 mm
OPTIONS
Black or Silver
Other
Headshell included
17 gms
Null @
nc
Overhang
16 mm
Offset Angle
22 .25 degrees
Option Cost
-
Other
-
-
SORANE / ZA-12 12" Tonearm
12" Gimbal-bearing Transcription design - Adjustable Anti-Skate
Alignment
nc
Effective Length
322 mm
Arm to Spindle
310 mm
OPTIONS
Black or Silver
Other
Headshell included
17 gms
Null @
nc
Overhang
12 mm
Offset Angle
16.5 degrees
Option Cost
Black - $2650
Other
-
-
FUNK FIRM / FX-3 12" Tonearm
12" Patented FX-CrossBeam design - ABEC 7 Bearings / Adjustable Azimuth & Antiskate / VTF Bias / Captive Phono Cable
Alignment
nc
Effective Length
308.2 mm
Arm to Spindle
295.6 mm
OPTIONS
5-PIN DIN
Other
-
Null @
nc
Overhang
12.6 mm
Offset Angle
nc
Option Cost
$75
Other
-
-
FUNK FIRM / FX-3 9" Tonearm
9" Patented FX-CrossBeam design - ABEC 7 Bearings / Adjustable Azimuth & Antiskate / VTF Bias / Captive Phono Cable
Alignment
nc
Effective Length
237 mm
Arm to Spindle
222.9 mm
OPTIONS
5-PIN DIN
Other
-
Null @
nc
Overhang
14.1` mm
Offset Angle
nc
Option Cost
$75
Other
-
-
FUNK FIRM / FX-5 LSD 9" Tonearm
9"Variable Mass Tonearm / Adjustable Azimuth & Antiskate / VTF Bias / Captive Phono Cable
Alignment
nc
Effective Length
239 mm
Arm to Spindle
222 mm
OPTIONS
5-PIN DIN
Other
-
Null @
nc
Overhang
17 mm
Offset Angle
nc
Option Cost
$75
Other
-
-
E.A.T. European Audio Team / C - Note 9" Tonearm
9 " Straight, Carbon Wand, Unipivot Cardan Bearing, DIN Cable Connector
Alignment
nc
Effective Length
230 mm
Arm to Spindle
212 mm
OPTIONS
-
Other
DIN Connector
Null @
130.6 min /243.7 max
Overhang
18 mm
Offset Angle
24
Option Cost
-
Other
-
-
MICHELL Audio / TecnoArm 2 9" Tonearm
9 " Straight, Unipivot Cardan Bearing, Attached Silver Litz Phono Cable
Alignment
NC
Effective Length
237 mm
Arm to Spindle
222 mm
OPTIONS
-
Other
Attached Cable
Null @
NC
Overhang
15 mm
Offset Angle
21.63
Option Cost
-
Other
2 x Counterweight
-
MICHELL Audio / T 3 9" Tonearm
9 " Straight, Unipivot Cardan Bearing, 3D CAD / CAM Design. Attached Litz Phono Cable
Alignment
NC
Effective Length
237 mm
Arm to Spindle
222 mm
OPTIONS
-
Other
Attached Cable
Null @
NC
Overhang
15 mm
Offset Angle
21.63
Option Cost
-
Other
1 x Counterweight
-
TONEARM & TURNTABLE ACCESORIES
Click on Price Buttons to see Product Detail Pages
SCHICK / Graphite Headshell
Oil- Graphite body, Ennemoser C37 lacquer treated pins and wiring, made in Germany
Feature 1
Graphite Body
Feature 2
Oil-soaked
Feature 3
Weight : 15.4 gms
Feature 4
-
Feature 5
-
Feature 6
-
OPTIONS
na
Option Cost
na
SCHICK / DIN Phono Cable (DIN 5-Pin to RCA)
Ennemoser C37 lacquer treated Copper wiring, 1.1m length, made in Germany
Feature 1
RCA Connector
Feature 2
DIN Connector
Feature 3
Anti-Stat Braid
Feature 4
1.1m length
Feature 5
Ennemoser C37 laquer
Feature 6
na
OPTIONS
na
Option Cost
-
E.A.T. European Audio Team / Record Weight
Massive - 810 gram stainless steel alloy record weight
Feature 1
810 gms
Feature 2
Stainless Steel
Feature 3
84 mm Diameter
Feature 4
32 mm Height
Feature 5
Internal Damping
Feature 6
-
OPTIONS
-
Option Cost
-
